Series 29013M

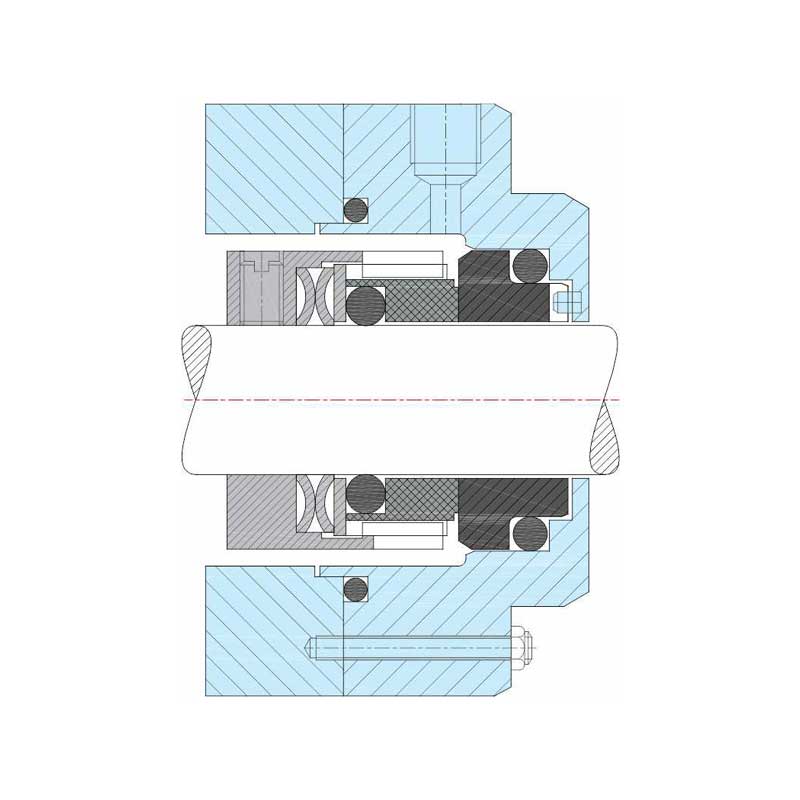

Series 290 Single Wave Spring Seal
Single wave spring seal for general duty in paper, sugar, sewage and polymer industries.
Key features
Built for the duty
Primary design characteristics for the Series 290.
- Single seal
- Inside mounted
- Unbalanced
- Wave spring loaded
Seal size14 mm to 150 mm
PressureUp to 8 bar
Temperature-20°C to 180°C
SpeedUp to 20 m/s
Seal faceCarbon, ceramic, silicon carbide, tungsten carbide
Secondary sealingViton, GFT, PTFE, Aflas, TTV
Metal componentsSS 316, Hastelloy C, Alloy 20
Corrosive chemicalsHydrocarbonsGeneral and light chemicals
