Series 25012B2

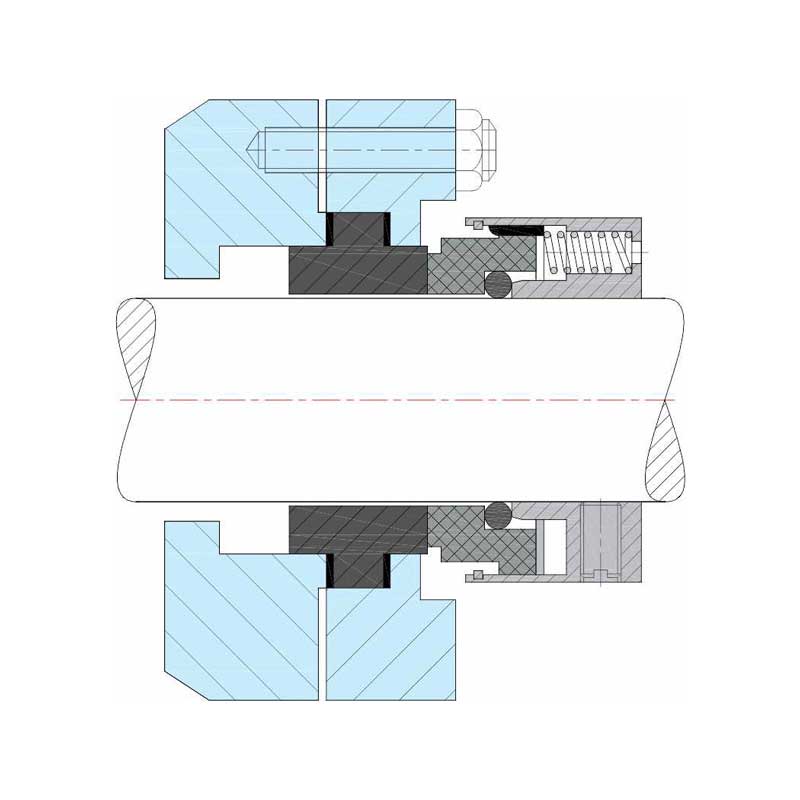

Series 250 Reverse Balance Seal
Externally mounted multi spring reverse balanced seal for corrosive and abrasive media.
Key features
Built for the duty
Primary design characteristics for the Series 250.
- Single seal
- Outside mounted
- Balanced
- Corrosive & abrasive media
Seal size19 mm to 100 mm
PressureUp to 15 bar
Temperature-20°C to 180°C
SpeedUp to 20 m/s
Seal faceCarbon, ceramic, silicon carbide, tungsten carbide
Secondary sealingViton, GFT, PTFE, TTV
Metal componentsSS 316, Hastelloy C, Alloy 20
Corrosive chemicalsHydrocarbonsGeneral and light chemicals
