Series 26014W

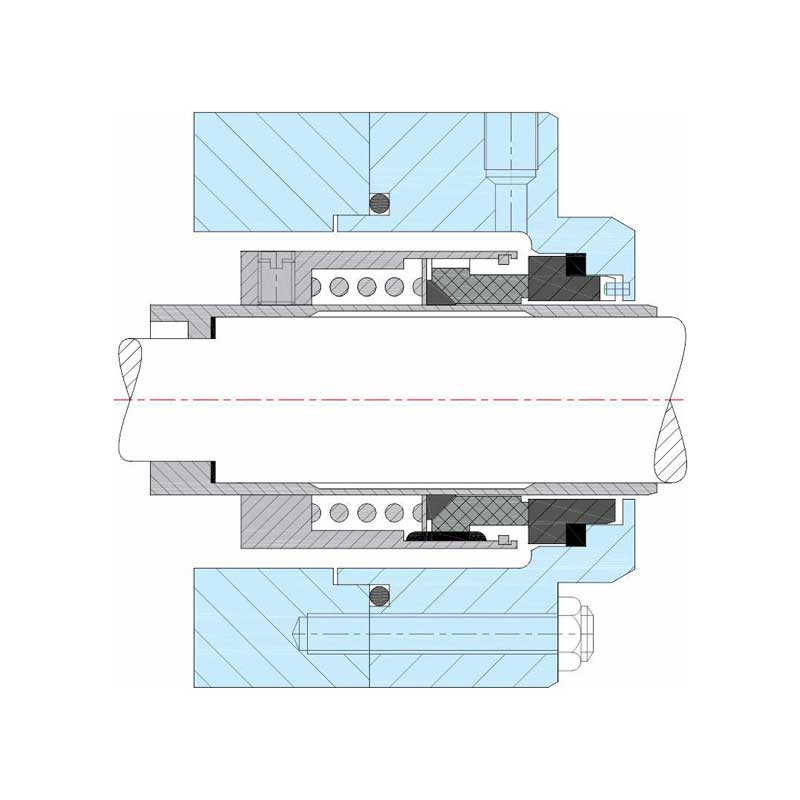

Series 260 Single Coil Spring Seal
Single coil spring seal for dirty media, driven by lugs so rotation direction does not matter.
Key features
Built for the duty
Primary design characteristics for the Series 260.
- Single seal
- Inside mounted
- Unbalanced or balanced
- Lug-driven
Seal size14 mm to 90 mm
PressureUp to 10 bar
Temperature-30°C to 200°C
SpeedUp to 20 m/s
Seal faceCarbon, ceramic, silicon carbide, tungsten carbide
Secondary sealingViton, GFT, PTFE, Aflas, Kalrez
Metal componentsSS 316, Hastelloy C, Alloy 20
Fertiliser plantsGeneral chemical pumpsPetroleum refineryLight hydrocarbons
