Series 22012W

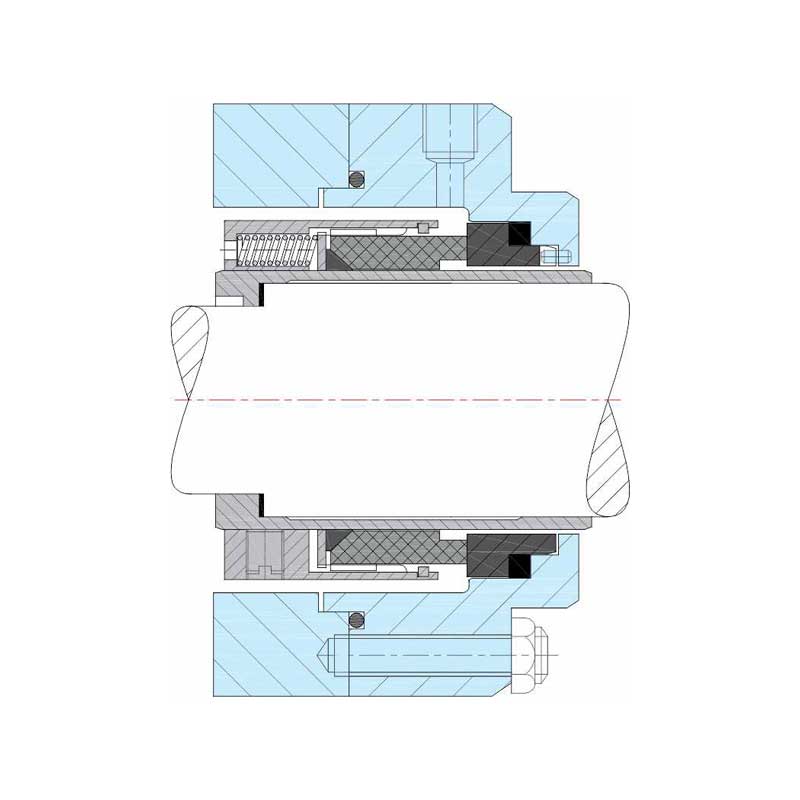

Series 220 Multi Coil Spring Unbalanced Seal
General purpose multi coil spring unbalanced seal with low spring load to limit shaft fretting.
Key features
Built for the duty
Primary design characteristics for the Series 220.
- Single seal
- Inside mounted
- Unbalanced
- Low spring load
Seal size14 mm to 150 mm
PressureUp to 10 bar
Temperature-30°C to 200°C
SpeedUp to 20 m/s
Seal faceCarbon, ceramic, silicon carbide, tungsten carbide
Secondary sealingViton, GFT, PTFE, Aflas
Metal componentsSS 316, Hastelloy C, Alloy 20
PetrochemicalsGeneral chemicalPetroleum refineryLight hydrocarbons
