Series 24012RV

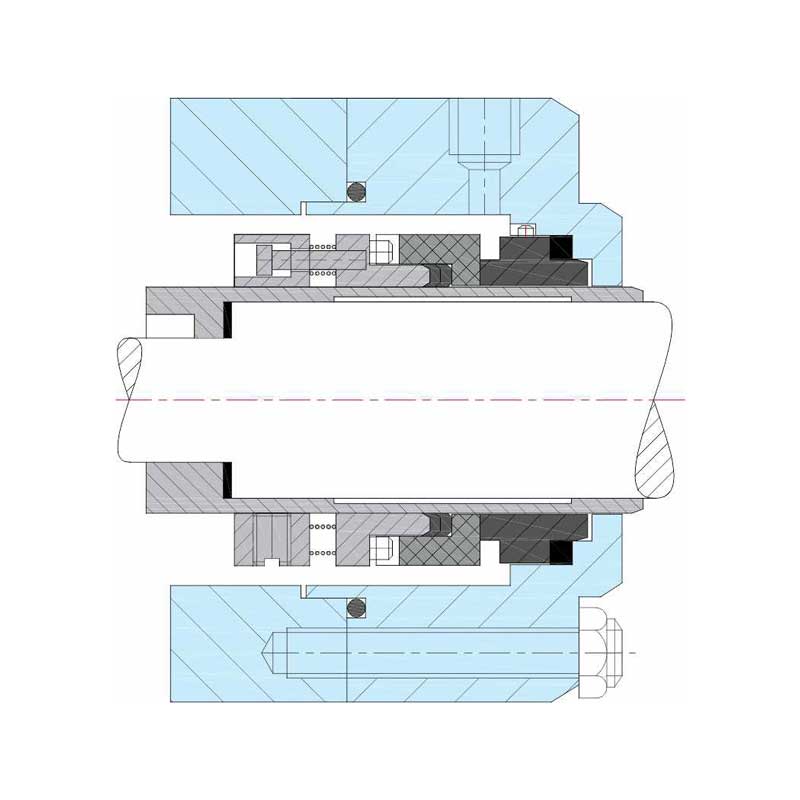

Series 240 Multi Spring Seal
Multi spring seal available balanced or unbalanced, with an exposed self-cleaning spring area.
Key features
Built for the duty
Primary design characteristics for the Series 240.
- Single seal
- Inside mounted
- Balanced or unbalanced
- Interchangeable seal face
Seal size14 mm to 120 mm
PressureUp to 10 bar
Temperature-30°C to 200°C
SpeedUp to 20 m/s
Seal faceCarbon, ceramic, silicon carbide, tungsten carbide
Secondary sealingViton, GFT, PTFE, Aflas, TTV
Metal componentsSS 316, Hastelloy C, Alloy 20
PetrochemicalsGeneral chemicalPetroleum refineryLight hydrocarbons
