Series 21012B

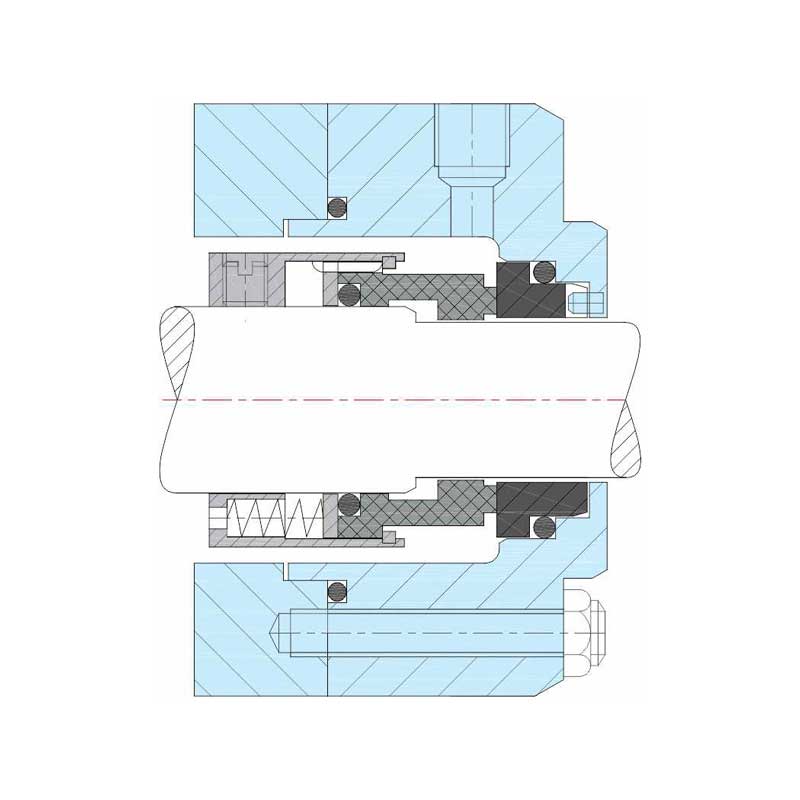

Series 210 Multi Coil Spring Balanced Seal
Multi coil spring balanced seal for high pressure duty in refineries and fertiliser plants.
Key features
Built for the duty
Primary design characteristics for the Series 210.
- Single seal
- Inside mounted
- Balanced
- Multi coil spring drive
Seal size19 mm to 100 mm
PressureUp to 15 bar
Temperature-20°C to 200°C
SpeedUp to 20 m/s
Seal faceCarbon, ceramic, silicon carbide, tungsten carbide
Secondary sealingViton, GFT, PTFE, Aflas, TTV
Metal componentsSS 316, Hastelloy C, Alloy 20
Acids & alkalisPetrochemicalsGeneral chemicalPetroleum refinery
