Series 20016U

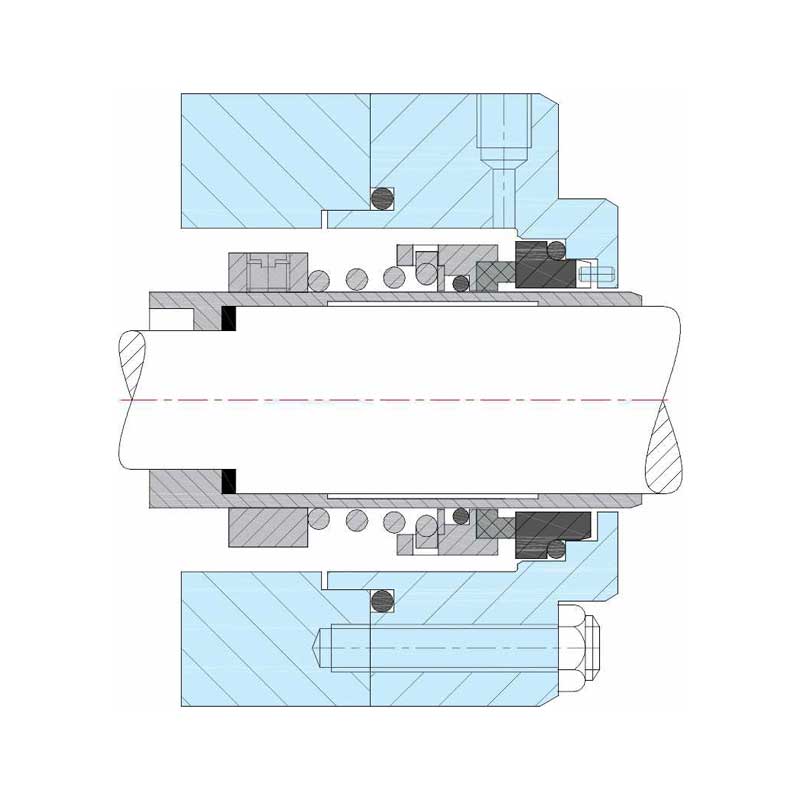

Series 200 Conical Spring Seal
Single coil conical spring seal for contaminated liquids, built from very few parts.
Key features
Built for the duty
Primary design characteristics for the Series 200.
- Single seal
- Inside mounted
- Unbalanced
- Direction of rotation dependent
Seal size14 mm to 120 mm
PressureUp to 10 bar
Temperature-20°C to 180°C
SpeedUp to 15 m/s
Seal faceCarbon, ceramic, silicon carbide, tungsten carbide
Secondary sealingViton, GFT, PTFE, Aflas
Metal componentsSS 316, Hastelloy C, Alloy 20
Water circulation pumpsChemical process pumpsSewage & submersible pumps
