Series 28014U

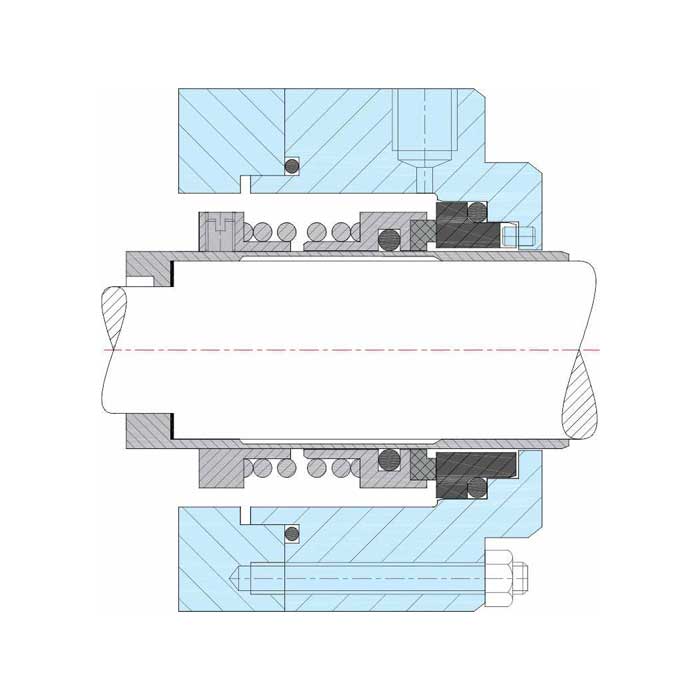

Series 280 Single Spring Seal
Compact single spring seal for contaminated liquids including slurries, sludge and viscous fluids.
Key features
Built for the duty
Primary design characteristics for the Series 280.
- Single seal
- Inside mounted
- Unbalanced
- Direction of rotation dependent
Seal size14 mm to 90 mm
PressureUp to 10 bar
Temperature-30°C to 150°C
SpeedUp to 20 m/s
Seal faceCarbon, ceramic, silicon carbide, tungsten carbide
Secondary sealingViton, PTFE, Aflas
Metal componentsSS 316, Hastelloy C, Alloy 20
PetrochemicalsGeneral chemicalLight hydrocarbons
