Series 27014V

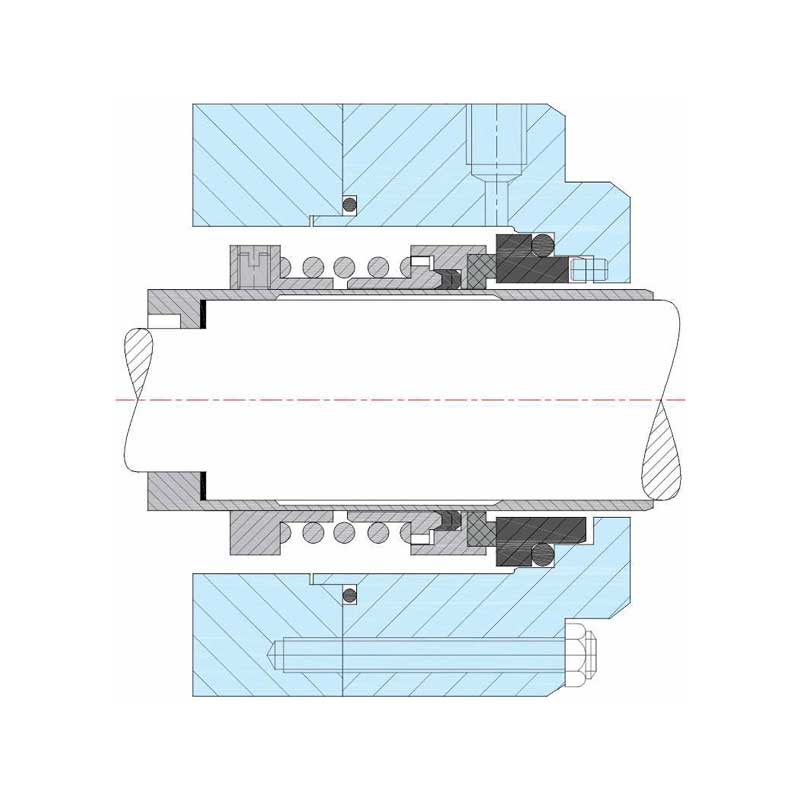

Series 270 Single Coil Spring Unbalanced Seal
Lug-driven single coil seal with PTFE double V-packing, ideal for dirty and clogging media.
Key features
Built for the duty
Primary design characteristics for the Series 270.
- Single seal
- Inside mounted
- Unbalanced
- PTFE double V-packing
Seal size14 mm to 90 mm
PressureUp to 10 bar
Temperature-30°C to 150°C
SpeedUp to 20 m/s
Seal faceCarbon, ceramic, silicon carbide, tungsten carbide
Secondary sealingViton, GFT, PTFE, Aflas
Metal componentsSS 316, Hastelloy C, Alloy 20
PetrochemicalsGeneral chemicalLight hydrocarbonsRefineries
