Series 23012HS

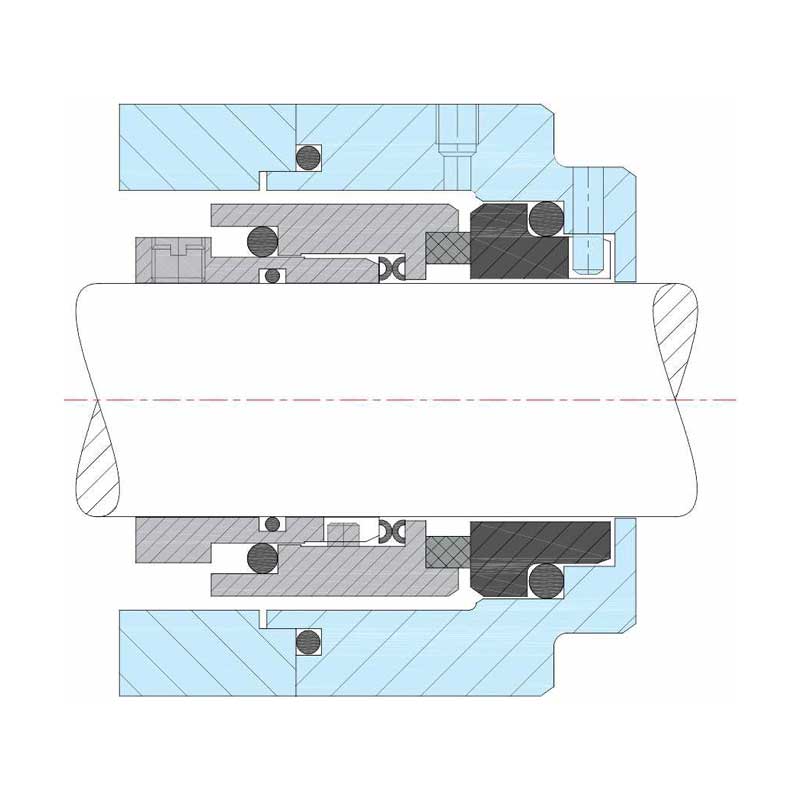

Series 230 Multi Spring Slurry Seal
Multi spring unit developed for slurry service, with springs protected by a dynamic O-ring.
Key features
Built for the duty
Primary design characteristics for the Series 230.
- Single seal
- Inside mounted
- Balanced
- Capsulated springs
Seal size20 mm to 100 mm
PressureUp to 10 bar
Temperature-20°C to 140°C
SpeedUp to 20 m/s
Seal faceCarbon, ceramic, silicon carbide, tungsten carbide
Secondary sealingViton, PTFE, Aflas, TTV
Metal componentsSS 316, Hastelloy C, Alloy 20
General chemicalFood industriesSlurry mediaMining industry
