Bellow SealsSeries 100
Welded metal bellow seal for high temperature service, non-pusher and self-cleaning.
- Single seal
- Inside mounted
Series 15012T/12TB

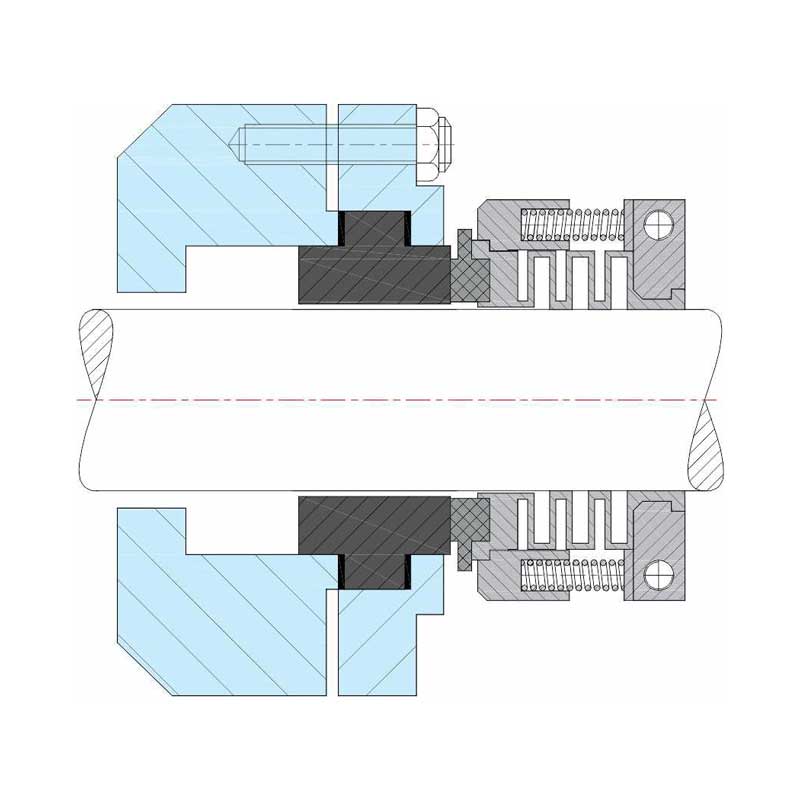

Series 150 Teflon Bellow Seal
Externally mounted PTFE bellow seal for concentrated acids, caustics and extreme corrosion.
Key features
Built for the duty
Primary design characteristics for the Series 150.
- Single seal
- Outside mounted
- Unbalanced
- Replaceable PTFE bellow face
Seal size18 mm to 100 mm
PressureUp to 6 bar
Temperature-20°C to 110°C
SpeedUp to 20 m/s
Seal faceCarbon, ceramic, silicon carbide, GFT
Secondary sealingPTFE bellow
Metal componentsSS 316, Hastelloy C, Alloy 20
Extremely corrosive serviceAcids & alkalis
Related products
More from this family
Other series within the bellow Seals range.
Bellow Seals
Bellow SealsSeries 110
Welded metal bellow seal for moderate temperature, corrosive, abrasive and viscous media.
- Single seal
- Inside mounted
Bellow SealsSeries 120
Single coil spring elastomer bellow seal for wastewater, submersible and sewage pumping.
- Single seal
- Inside mounted
Bellow SealsSeries 130
Single coil spring elastomer bellow seal with self-aligning secondary seal, 12 mm to 100 mm.
- Single seal
- Inside mounted
Bellow SealsSeries 140
Elastomeric bellow seal for general, non-critical light service such as water and oil.
- Single seal
- Inside mounted
