Series 14025R

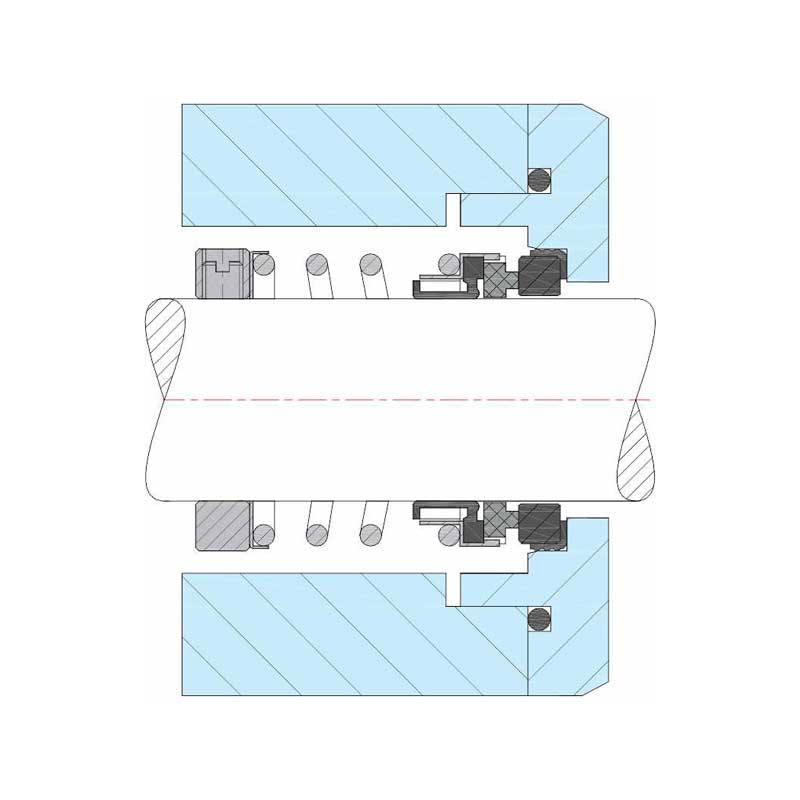

Series 140 Rubber Bellow Seal
Elastomeric bellow seal for general, non-critical light service such as water and oil.
Key features
Built for the duty
Primary design characteristics for the Series 140.
- Single seal
- Inside mounted
- Unbalanced
- Elastomer bellow seal
Seal size20 mm to 90 mm
PressureUp to 10 bar
Temperature-20°C to 150°C
SpeedUp to 20 m/s
Seal faceCarbon, ceramic, silicon carbide, tungsten carbide, chrome cast
Secondary sealingViton, nitrile, neoprene
Water pumpsGear pumpsRefrigeration compressorsFuel injection pumps
