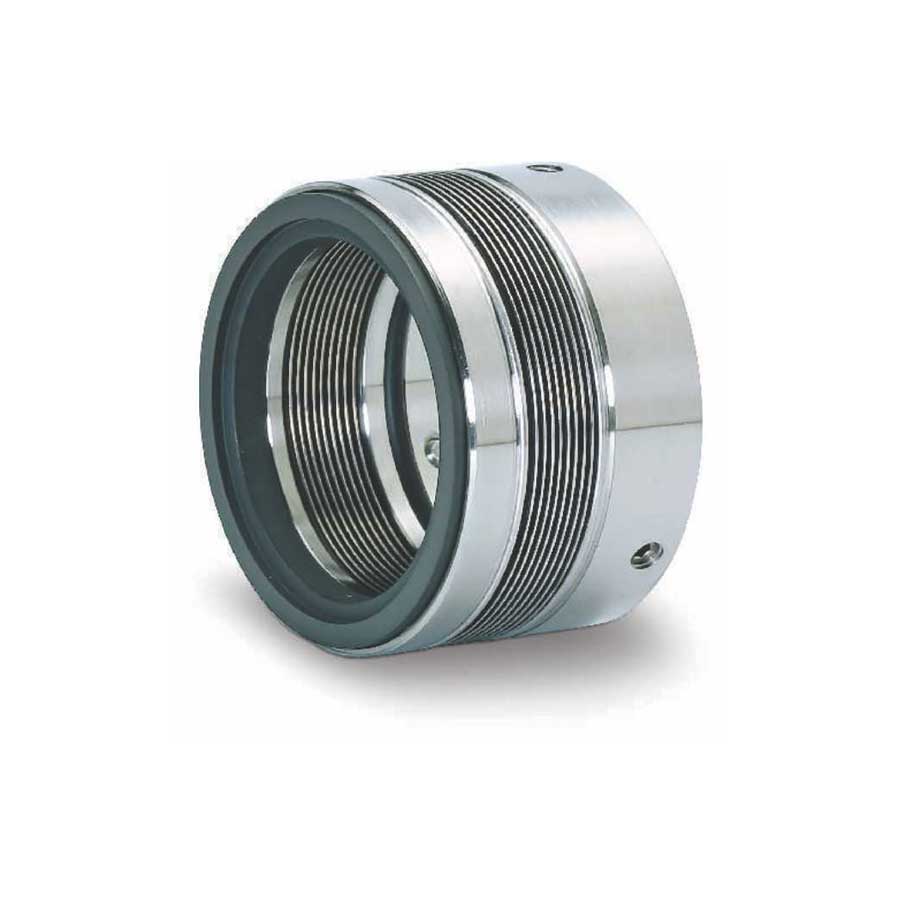

Bellow SealsSeries 110
Welded metal bellow seal for moderate temperature, corrosive, abrasive and viscous media.
- Single seal
- Inside mounted
Series 10022G

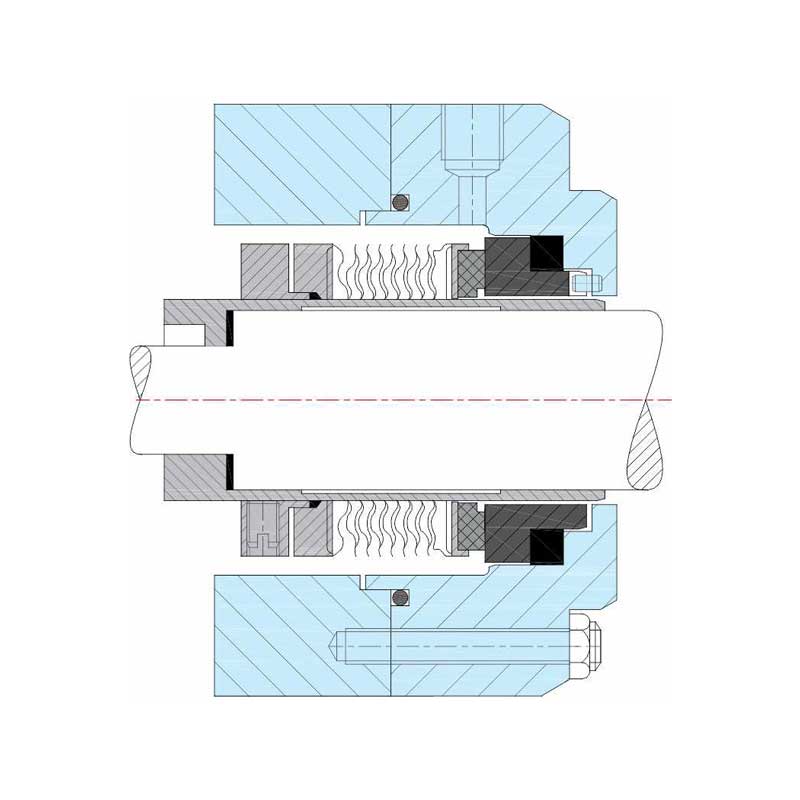

Series 100 Metal Bellow Seal
Welded metal bellow seal for high temperature service, non-pusher and self-cleaning.
Key features
Built for the duty
Primary design characteristics for the Series 100.
- Single seal
- Inside mounted
- Balanced
- Welded metal bellow
Seal size20 mm to 90 mm
PressureUp to 12 bar
Temperature-20°C to 400°C
SpeedUp to 20 m/s
Seal faceCarbon, silicon carbide, tungsten carbide
Secondary sealingGrafoil
Welded bellowSS 316, AM-30, Hastelloy C, titanium, Alloy 20
PetrochemicalsPetroleum refineryOil refineryNuclear plant
Related products
More from this family
Other series within the bellow Seals range.
Bellow Seals

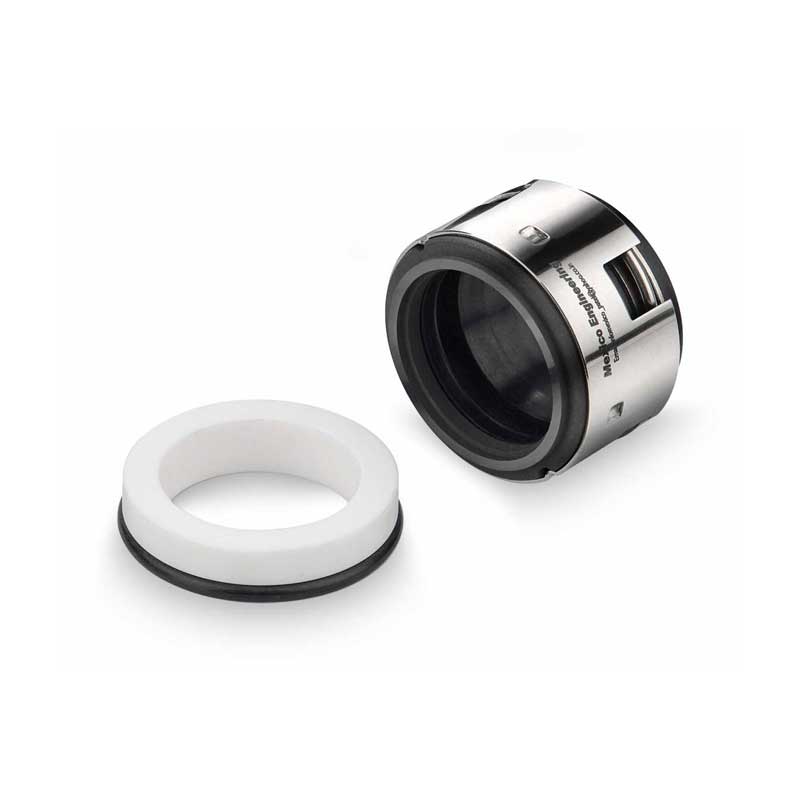

Bellow SealsSeries 120
Single coil spring elastomer bellow seal for wastewater, submersible and sewage pumping.
- Single seal
- Inside mounted

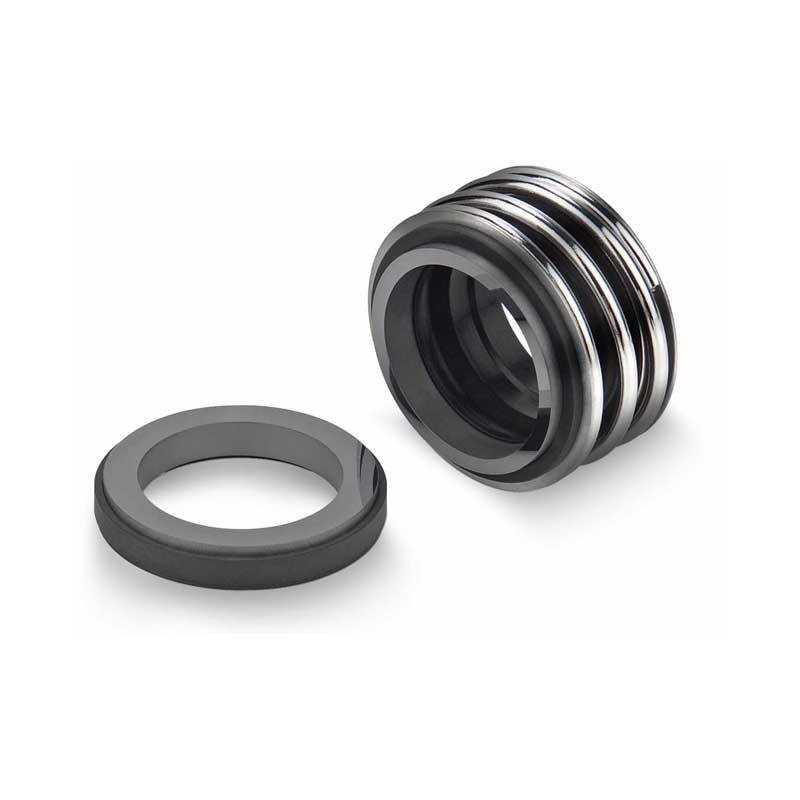

Bellow SealsSeries 130
Single coil spring elastomer bellow seal with self-aligning secondary seal, 12 mm to 100 mm.
- Single seal
- Inside mounted

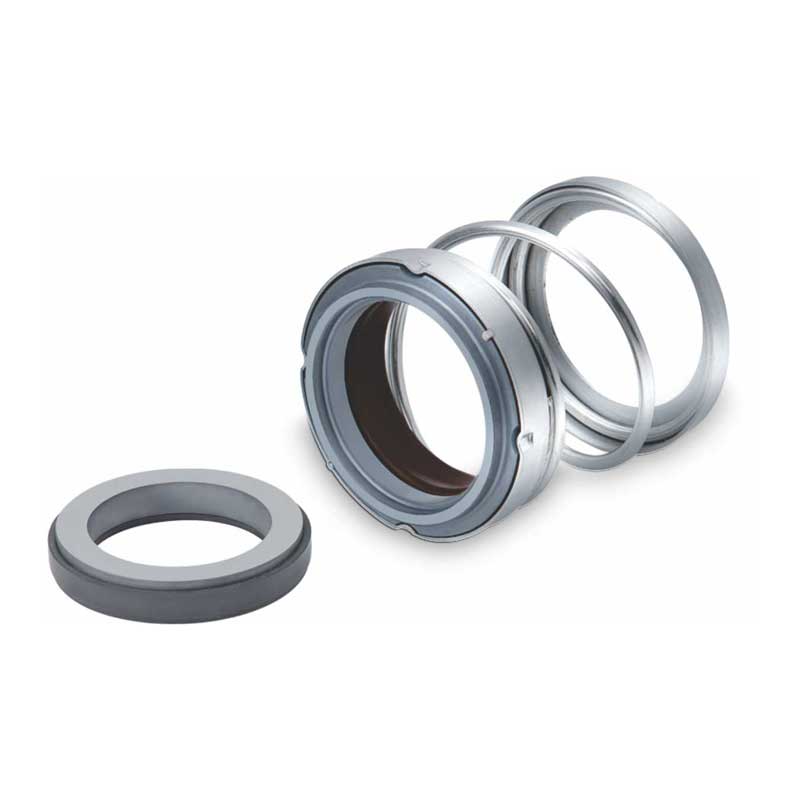

Bellow SealsSeries 140
Elastomeric bellow seal for general, non-critical light service such as water and oil.
- Single seal
- Inside mounted

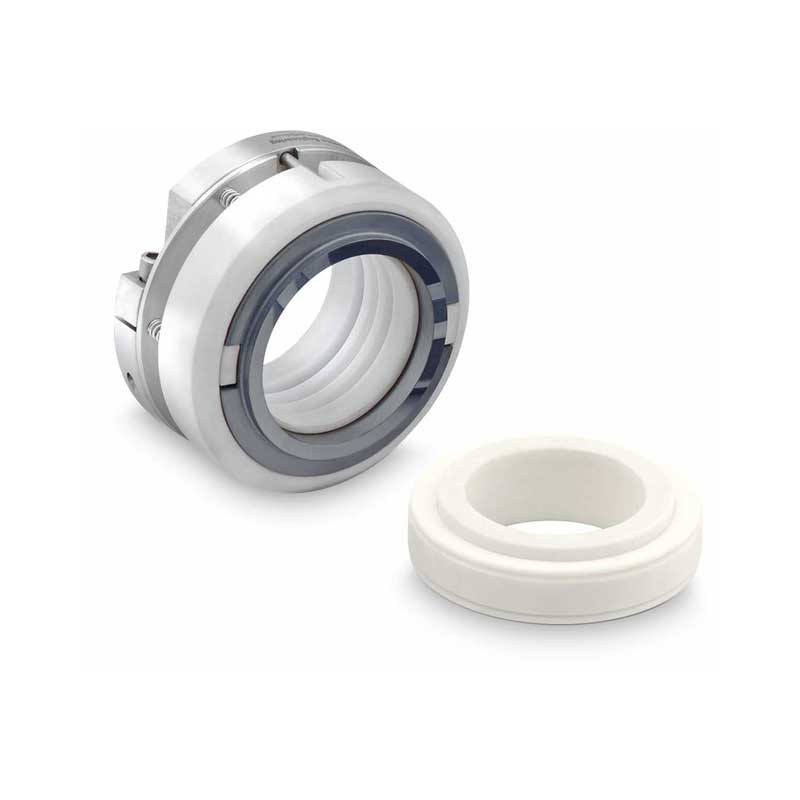

Bellow SealsSeries 150
