Series 13025M

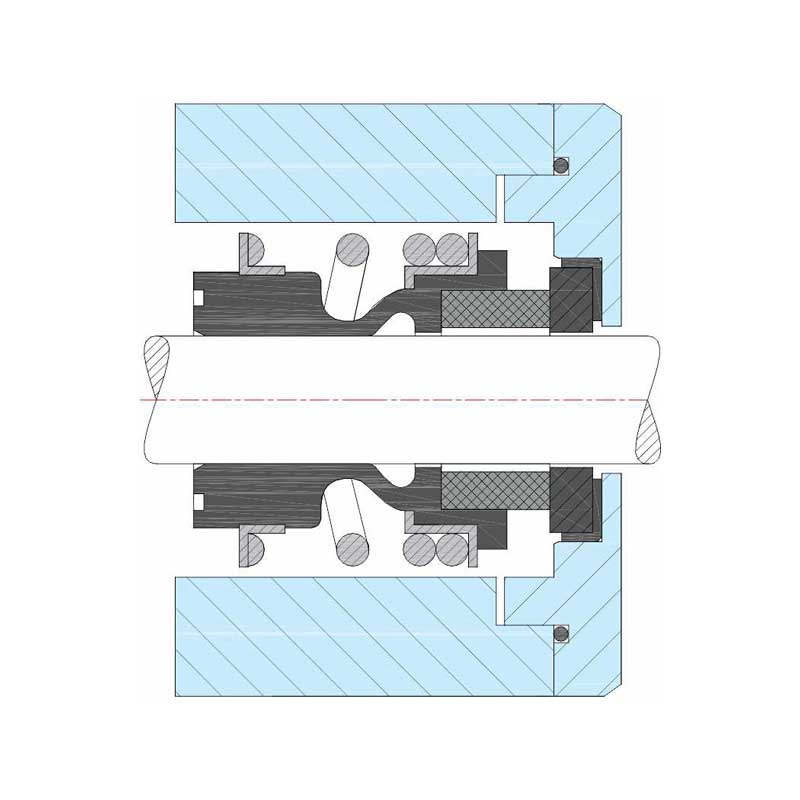

Series 130 Rubber Bellow Seal
Single coil spring elastomer bellow seal with self-aligning secondary seal, 12 mm to 100 mm.
Key features
Built for the duty
Primary design characteristics for the Series 130.
- Single seal
- Inside mounted
- Unbalanced
- Elastomer bellow seal
Seal size12 mm to 100 mm
PressureUp to 10 bar
Temperature-20°C to 160°C
SpeedUp to 20 m/s
Seal faceCarbon, ceramic, silicon carbide, tungsten carbide
Secondary sealingViton, nitrile, neoprene, EPDM
Waste water pumpsSubmersible pumpsSewage pumps
