Series 11022U

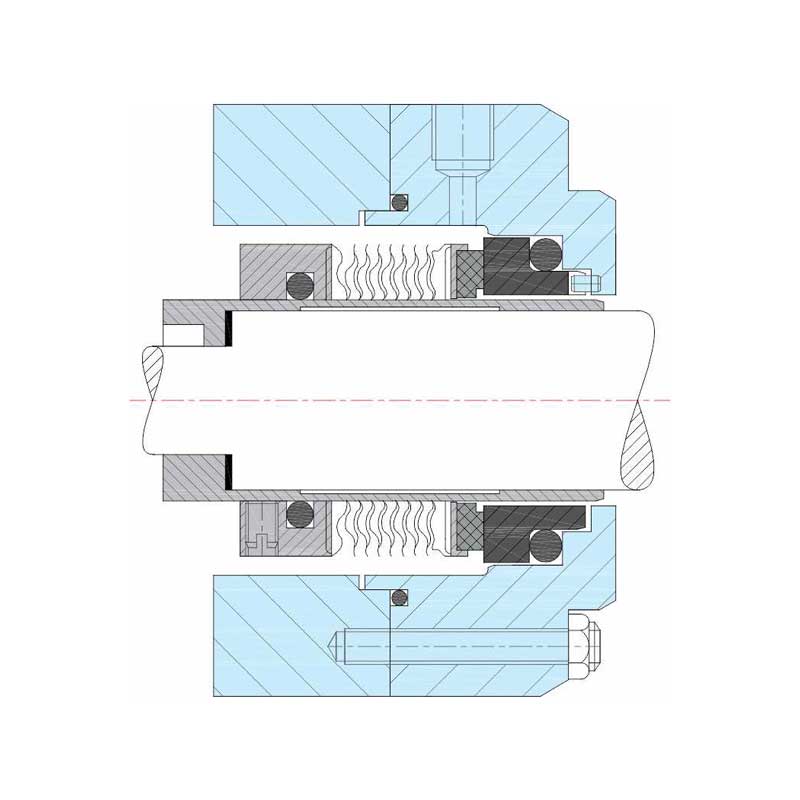

Series 110 Metal Bellow Seal
Welded metal bellow seal for moderate temperature, corrosive, abrasive and viscous media.
Key features
Built for the duty
Primary design characteristics for the Series 110.
- Single seal
- Inside mounted
- Unbalanced
- Welded metal bellow
Seal size25 mm to 100 mm
PressureUp to 12 bar
Temperature-20°C to 250°C
SpeedUp to 20 m/s
Seal faceCarbon, silicon carbide, tungsten carbide
Secondary sealingViton, PTFE, Kalrez
Metal componentsSS 316, AM 350, Hastelloy C, Alloy 20
Petrochemical refineryOil refinery
